The World's First Detection Method ZCL Hall effect IC

ZCL、全く新しい第3の検知方式

The Ideal
BLDC Motor

A motor that
rotates smoothly,
is not affected by changes
in temperature or
magnetic flux density and
always operates
at high efficiency
It must be low profile
and compact to
not interfere
with the design

What
the ZCL^TM Hall Effect IC Accomplishes

We will strive to make
this “New Generation of
Hall effect ICs” the core of
the ideal BLDC motor that will
minimize design work.

Get Online

The ZCL hall effect IC is
a new generation of Hall effect ICs that change the output signal at the point polarity changes (zero crossing point) and employs
the world’s first^*1 detection method optimized for brushless DC motor control.

Explans the World's First
Detection Mechanism
≫"What is a ZCL Hall Effect IC?"

The ZCL IC is a new generation of Hall effect ICs that change the output signal
at the point polarity changes (zero crossing point) and employs
the world’s first detection method optimized
for brushless DC motor control.

Reducing Design Man Hours to Create the Ideal Motor

Complex control programs are not needed to create a motor that runs smoothly.

A ZCL Hall effect IC is not easily affected by variations in magnets or changes in magnetic flux density and provides the expected rotation detection. Smooth motor rotation is obtained without complex program control.

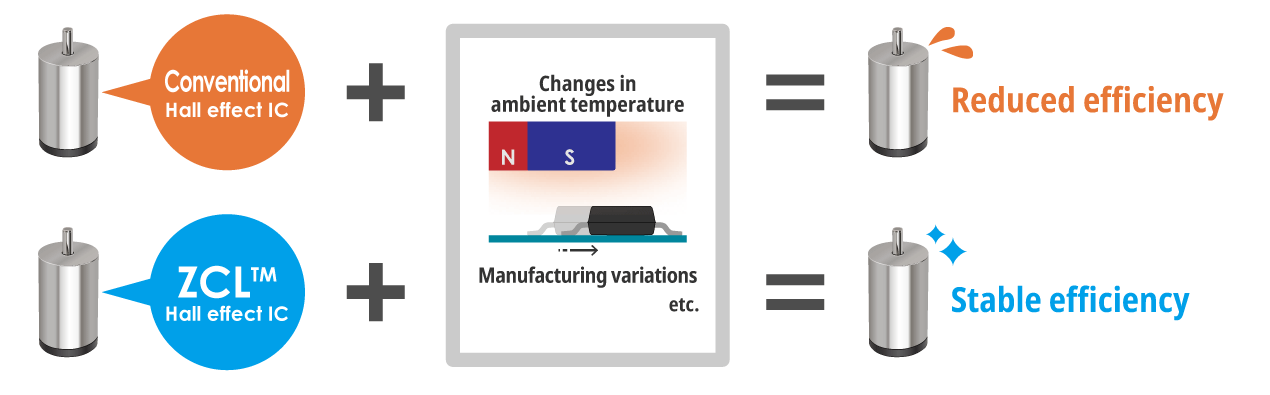

Striving for a high efficiency motor that reduces the need for calibration

Rotation detection unaffected by temperature change or design tolerances is a ZCL Hall effect IC characteristic.
Use a ZCL Hall effect IC to create a motor that will be able to constantly operate at full torque without calibration. Nor will it be affected by drops in efficiency due to temperature changes or design tolerances.

The world’s lowest profile package helps our efforts to further shrink motor height and size

The ZCL Hall Effect IC employs the TSOT-23-3S (2.9 x 2.8 x t0.8mm), a new package that is an extremely slimmed down version of the industry standard SOT-23-3 package. With a height of a mere 0.8mm, the TSOT-23-3S is the world’s lowest profile package that reduces the distance between the circuit board and the magnets and is a great help in reducing motor package size.
