Single chip for handling the requirements of a multifunctional MCU

The increasing functionality of MCUs and automotive devices has increased the amount of current they require.
Power supply ICs capable of delivering high current are therefore in great demand.

S-19516/7 and the S-19519 Series
 - are equipped with an LDO regulator capable of handling 500mA. The capability of this LDO regulator to supply high current solves problems such as the switching noise generated by DC-DC converters and increase in external parts.

 - The integrated watchdog timer (WDT) and reset (VD) functions help simplify circuit design.

 - In addition, these functions provide an ultra-low self-current consumption of 3.0μA typ.^*, which is indispensable to reducing standby current.
(*S-19516/7 Series)

 "Window mode WDT" detects MCU faults with high accuracy

Automotive devices need to be safe and require WDT capable of reliably detecting MCU faults.

The S-19516/7 and the S-19519 Series are equipped with a “window mode WDT.”
This mode is able to detect not only long-period absence of input signals from an MCU but also short-period repeated signal input (double pulse) as faults.

> Description of window mode advantages

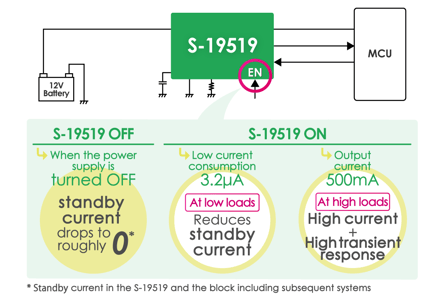

 Enable pin for further reduction of standby current

The S-19519 Series has an Enable (EN) pin that can set the entire IC to standby state.

When S-19519 operation is turned OFF,
 - Standby current drops to roughly 0 when the power supply to the MCU is stopped. Any leak current generated in the MCU due to high temperature or other condition can be stopped by turning the power off.

When S-19519 operation is turned ON,
 - The ultra-low current consumption reduces standby current at low loads.
 - High current output of 500mA and fast response ensure smooth operation at high loads.High output current and fast response ensure smooth operation at high loads.

The S-19519B Series has WO and RO* and processing can be modified depending on the error that occurs.

*WO: Watchdog output pin, RO: Reset output pin
